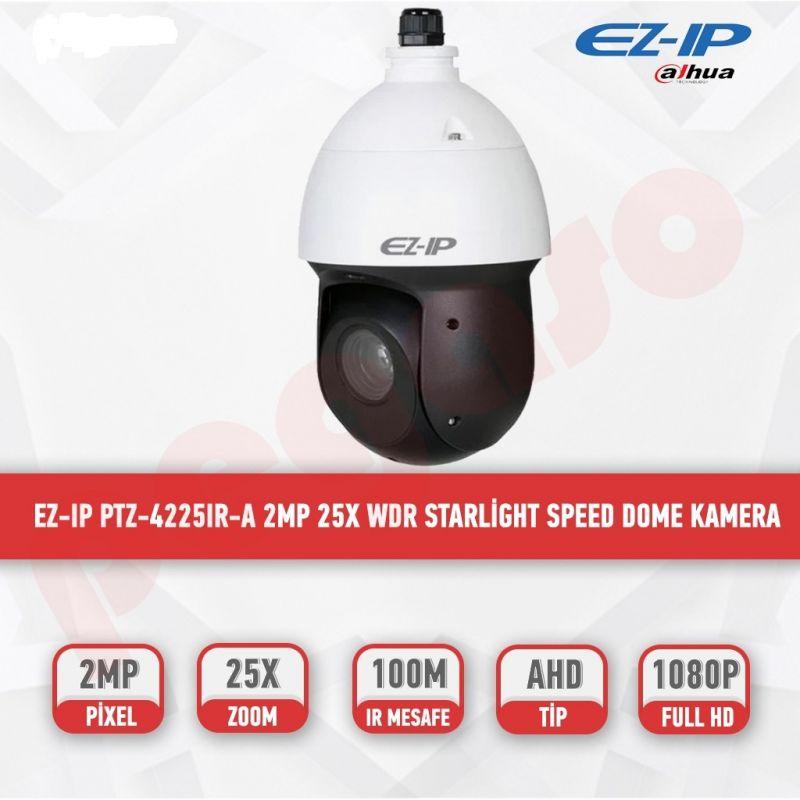

Ez-Ip PTZ-4225IR-N 2mp 4.8MM-120MM Lens 25X Wdr Poe+ Starlight Ip Speed Dome

Çözünürlük 2Mp
Lens Türü Motorize Lens
Lens Değeri 4.8-120Mm
Görüntü Sensörü Cmos
Sensör Değeri 1/2.8″
Wdr 120 Db Wdr
Tahmini Görüş Mesafesi 100 Metre
Sıkıştırma Formatı H.264,H.264+,H.265,H.265+
Ses Özelliği Harici Mikrofon Takılabilir
Alarm Tetik Var
Hafıza Kart Desteği Var
Poe Desteği Var
Satış Garanti Süresi (Ay) 24
Detaylı Bilgiler :

2Mp 25X Starlight Ir Ptz Network Kamera

1/2.8” 2 Megapiksel Starvıs™ Cmos

4.8Mm~120Mm Lens

25X Optik Zoom

H.265+ & H.265

Üçlü Akış

Alarm I/O 2/1,1×1 Ses Girişi

25/30Fps@1080P, 25/30Fps@720P

Poe+ Destekler

Blc / Hlc, Defog

Wdr (120Db)

Alan İhlali, Yüz Algılama, Kayıp/Unutulmuş Eşya Analizi

Poe+ Destekler

128Gb Micro Sd Kart Desteği

Gece – Görüş Mesafesi 100M

Ip66

Çalışma Sıcaklığı : -40°C ~ 70°C

Ayak Dahil





Camera Ez-Ip Ptz-4225Ir-N
Image Sensor 1/2.8” Starvıs™ Cmos
Effective Pixels 1920(H) X 1080(V), 2 Megapixels
Ram/Rom 1024M/128M
Scanning System Progressive
Electronic Shutter Speed 1/1S~1/30,000S
Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (Ir On)
S/N Ratio More Than 50Db
Ir Distance Distance Up To 100M (328Ft)
Ir On/Off Control Auto/Manual
Ir Leds 6
Lens
Focal Length 4.8Mm~120Mm
Max. Aperture F1.6 ~ F4.4
Angle Of View H: 62.8° ~ 2.6°
Optical Zoom 25X
Focus Control Auto/Manual
Close Focus Distance 100Mm~ 1000Mm
Ptz
Pan/Tilt Range Pan: 0° ~ 360° Endless; Tilt: -15° ~ 90°,Auto Flip 180°
Manual Control Speed Pan: 0.1° ~200° /S; Tilt: 0.1° ~120° /S
Preset Speed Pan: 240° /S; Tilt: 200° /S
Presets 300
Ptz Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-Oriented Focal Length/ Speed Adaptation
Power Up Action Auto Restore To Previous Ptz And Lens Status After Power Failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern İf There İs No Command İn The Specified Period
Protocol Dh-Sd
Intelligence
Event Trigger Motion Detection, Video Tampering, Network Disconnection, Ip Address Conflict, Illegal Access, Storage Anomaly
Auto Tracking N/A
Ivs Tripwire, Intrusion,Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/Cıf(352×288/352×240)
Frame Rate Main Stream: 1080P/720P(1 ~ 25/30Fps)
Sub Stream1: D1/Cıf(1 ~ 25/30Fps)
Sub Stream2: 720P/D1/Cıf(1 ~ 25/30Fps)
Bit Rate Control Cbr/Vbr
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Day/Night Auto(Icr) / Color / B/W
Backlight Compensation Blc / Hlc / Wdr(120Db)
White Balance Auto, Atw, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra Dnr (2D/3D)
Motion Detection Support
Region Of Interest Support
Electronic Image Stabilization (Eıs) N/A
Defog Support
Digital Zoom 16X
Flip 180°
Privacy Masking Up To 24 Areas
Audio
Compression G.711A/G.711Mu/G.726/Aac
Network
Ethernet Rj-45 (10Xbase-T/100Base-Tx)
Protocol Ipv4/Ipv6, Http, Https, Ssl, Tcp/Ip, Udp, Upnp, Icmp, Igmp, Snmp, Rtsp, Rtp, Smtp, Ntp, Dhcp, Dns,Pppoe,Ddns,Ftp, Ip Filter,Qos,Bonjour,802.1X
Interoperability Onvıf Profile S&G, Apı
Streaming Method Unicast / Multicast
Max. User Access 20 Users
Edge Storage Nas (Network Attached Storage),Local Pc For İnstant Recording, Micro Sd Card 256Gb
Web Viewer Ie, Chrome, Firefox, Safari
Management Software Smart Pss, Dss, Dmss
Smart Phone Ios, Android
Certifications
Certifications Ce: En55032/En55024/En50130-4
Fcc: Part15 Subpartb,Ansı C63.4- 2014
Ul: Ul60950-1+Can/Csa C22.2,No.60950-1
Interface
Video Interface N/A
Rs485 N/A
Audio I/O 11
Alarm I/O 21
Electrical
Power Supply Dc 12V/3A, Poe+(802.3At)
Power Consumption 13W, 22W (Ir On,Heater On)
Environmental
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less Than 95% Rh
Ingress Protection Ip66
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ160(Mm) X 295(Mm)
Net Weight 3Kg(6.61Lb)
Gross Weight 4.2Kg(9.26Lb)
